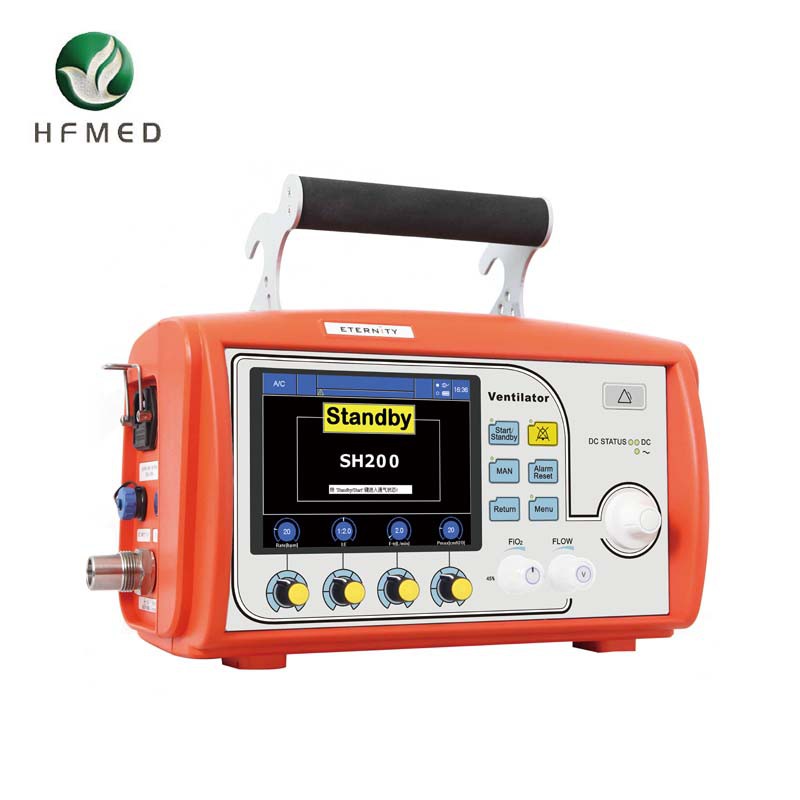

Shanghai Huifeng Medical Instrument Co., Ltd. is one of the leading manufacturers and suppliers of medical ventilator in China. We warmly welcome you to buy high quality medical ventilator for sale here from our factory. We also accept customized orders.
Features
1. Real-time recording of flow-time waveform, pressure-volume loop and other waveforms allows users to grasp the patient's condition at any time, and everything is in hand.
2. The abundant display interface of patient monitoring parameters makes each parameter clear at a glance, and enables medical workers to understand the patient's condition more comprehensively. It provides a perfect basis for the formulation of treatment plan and evaluation of treatment effect.
3. More scientific and convenient operation.
4. The respirator is a high definition liquid crystal display (LCD liquid crystal) with clear parameters setting and monitoring.
5. Monitoring parameters and safety parameters are set with the design of "humanization, quick response and touch switching", which makes the operation more scientific and convenient.
Main Parameters
|
Technical Parameters |
HF-SH200 |
|
Tidal volume |
0,50~1500mL |
|
Breath rate |
4~80bpm |
|
SIMV breathing rate |
1~40bpm |
|
Inhalation-expiration ratio |
3:1~1:5 |
|
Inspiratory time in SIMV mode |
0.2~10s |
|
Oxygen concentration |
45~100% |
|
Pressure trigger |
-20cm H2O ~ 0cm H2O (below PEEP) |
|
Flow rate trigger |
1~20L/min |
