Personal Xray Machine
Personal Xray Machine

Personal Xray Machine

The compact design makes it easy to carry in different areas and locations.
With three exposure control methods: Wireless / Hand brake / Operation panel.
Fault self-diagnosis, self-protection.
Send Inquiry

Shanghai Huifeng Medical Instrument Co., Ltd. is one of the leading manufacturers and suppliers of personal xray machine in China. We warmly welcome you to buy high quality personal xray machine for sale here from our factory. We also accept customized orders.

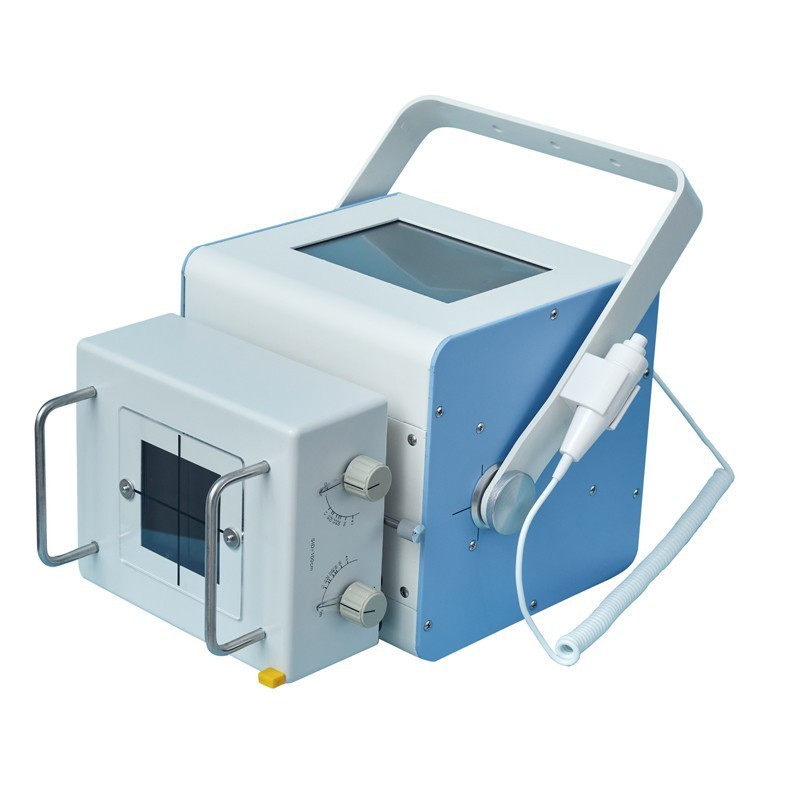

HF-XR80RP 8-inch Screen For Human Use



Features



  1. Using high frequency inverter technology, the high voltage output is stable and good image quality can be obtained.
  2. The compact design makes it easy to carry in different areas and locations.
  3. With three exposure control methods: Wireless / Hand brake / Operation panel.
  4. Fault self-diagnosis, self-protection.
  5. With flexible digital interface and SDK protocol, users can go deep into the core programming control and adapt to different DR detectors.
  6. High-frequency power meets all kinds of large volume, thick position radiography. High-voltage generator outputs more stable kV. Large-heat capacity of X-ray tube supports long time and large does of continuous working. Fast anode rotation ensures great heat dissipation and long service life.
  7. Four-sides floating bed would extend the coverage of the radiography, fully meeting clinical radiography request. ±180° vertical column rotation in four directions, every 90° automatically lock, easily turn the X-ray tube to achieve the horizontal with the vertical column, electromagnetic unlock, which will more reliable and safer.



Main Parameters



Technical Parameters

HF-XR80RP

Max Output Power

8kW

Power Capacity

100kV@80mA

Radiographic kV Range

40-125kV

Radiographic mA Range

32-125mA

mAs Range

0.32-400mAs

Exposure Time Range

0.01-6.3s

Operating Frequency

≥30kHz

Input Power Type

220V±10%, 50Hz/60Hz Or 110V±10%, 50Hz/60Hz

Dimensions

370mm*300mm*240mm including collimator

Weight

21KG

Inverter Method

PWM (pulse width modulation)
