Shanghai Huifeng Medical Instrument Co., Ltd. is one of the leading manufacturers and suppliers of monopolar electrosurgical unit in China. We warmly welcome you to buy high quality monopolar electrosurgical unit for sale here from our factory. We also accept customized orders.

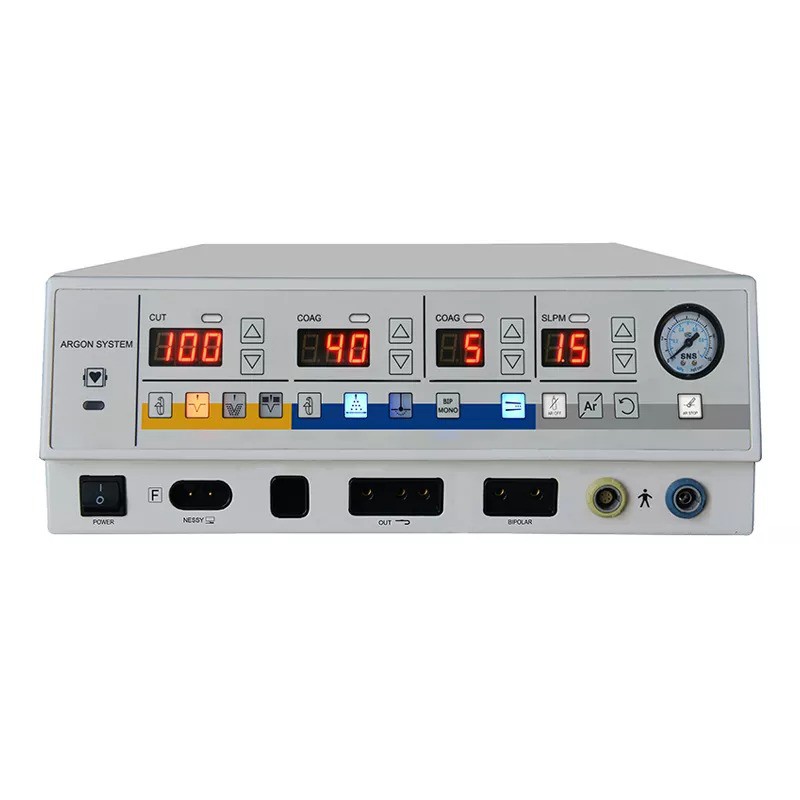

HF-350B
Features
Patient plate cable: Main unit has autmatic monitoring function and mistake indication function.
Ordinary double foot switch: Owns memory function, reserves the last time used data. High definition large LED indication.
Disinfection hand control knife: Can cut underwater, including organic cut in rich fat area. Automatically adjust power output for different body tissue impedances to ensure optimal cutting and coagulation effects.
Main Parameters
|
Technical Parameters |
HF-350B |
|
Ambient temp. range |
5℃-40℃ |
|
Relative Humidity Range |
≤80 |
|
Atmospheric Pressure Range |
86.0-106.0kpa |
|
Power |
220V±22v, 50Hz±1 |
|
Operating Freq |
330-460kHz |
|
Rated power |
1100VA±10% |
|
Type |
CF |
|
Power Consumption |
≤1100VA (Cut function 400) |
|
Transportation and Storage |
|
|
a) Ambient Temp. Range |
40℃-55℃ |
|
b) Relative Humidity |
≤95% |
|
c) Atmospheric Pressure |
500hpa-1060hpa |
|
Power output |
400W |
|
Six output mode |
1. Cut; 2. Blend 1; 3. Blend 2; 4. Electro Coag 1; 5. Electro Coag 2; 6. Bipolar Coagulation. |
|
Output Rating |
|
|
a) Cut |
1W-400W (Load 500Ω) |
|
b) Blend 1 |
1W-200W (Load 500Ω) |
|
c) Blend 2 |
1W-120W (Load 500Ω) |
|
d) Electro Coag 1 |
1W-150W (Load 500Ω) |
|
e) Electro Coag 2 |
1W-80W (Load 500Ω) |
|
f) Bipolar Coagulation |
1W-70W (Load 500Ω) |
