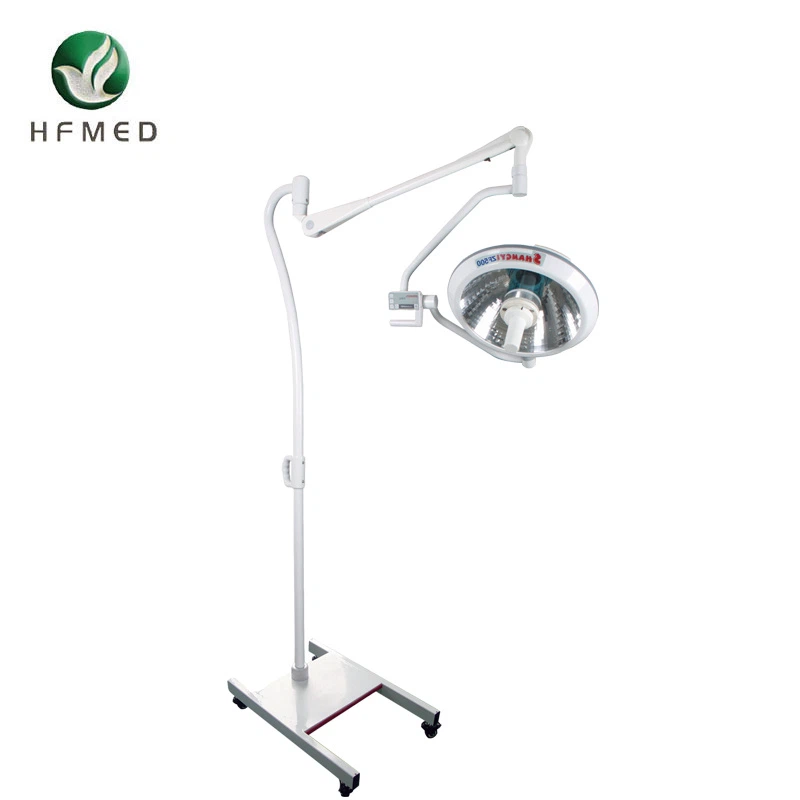

Shanghai Huifeng Medical Instrument Co., Ltd. is one of the leading manufacturers and suppliers of halogen surgical light in China. We warmly welcome you to buy high quality halogen surgical light for sale here from our factory. We also accept customized orders.
ZF500S
Products Description
Halogen Surgical Light delivers brilliant, shadow-free illumination for operating rooms with high-intensity halogen bulbs. This Halogen Surgical Light provides warm, natural lighting (up to 100,000 lux) and exceptional color accuracy (CRI>90) for precise procedures. Features heat-dissipating design, adjustable focus, and durable articulating arms. Ideal for traditional ORs requiring reliable, high-performance lighting with minimal glare.
Features
For multiple occasions: ZF series shadowless Operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.
Depth of illumination: The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1000mm; by using color temperature compensation technology, the colour reversion is uprised , and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
Easy to use: The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable, Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360 universal design can satisfy various needed height and angle in the operation.
Long service life: Halogen generally is 1000 hours, the LED is the (Osram) more than 50000 hours.
Natural operation colour temperature: The CRI for natural light is 100. The CRI of ZF series integral reflecting shadowless operating lamp is 98, which is very near natural light. It can help the surgeon to distinguish the color of operating region (including blood vessel and nerve tract), it can help to distinguish the tissues of body clearly.
High quality components: All the key parts use the world famous products, ensure stable and reliable operation; flame retardant level material can endure high temperautre and safe, meets IEC norm.
Main Parameters
|
Technical Parameters |
ZF500S |
|
Illuminance |
ZF500S: ≥100,000Lux |
|
Colour temperature |
4500±500K |
|
Colour reduction index (Ra) |
90 |
|
Illuminance depth |
≥1000mm |
|
Total irradiance |
ZF500S: 466W/㎡ |
|
The ratio between irradiance and illuminance |
3.3mW/㎡lx |
|
Size of light field |
160-280mm |
|
Rated power of bulb |
150W |
|
Service life of illuminant |
≥1,000h |
|
Power supply voltage |
AC110-240V, 50/60Hz |
|
Shift of major and stand by lamps |
Automatic |
