Shanghai Huifeng Medical Instrument Co., Ltd. is one of the leading manufacturers and suppliers of surgery led operating lamp in China. We warmly welcome you to buy high quality surgery led operating lamp for sale here from our factory. We also accept customized orders.
YD01-LED5
Products Description

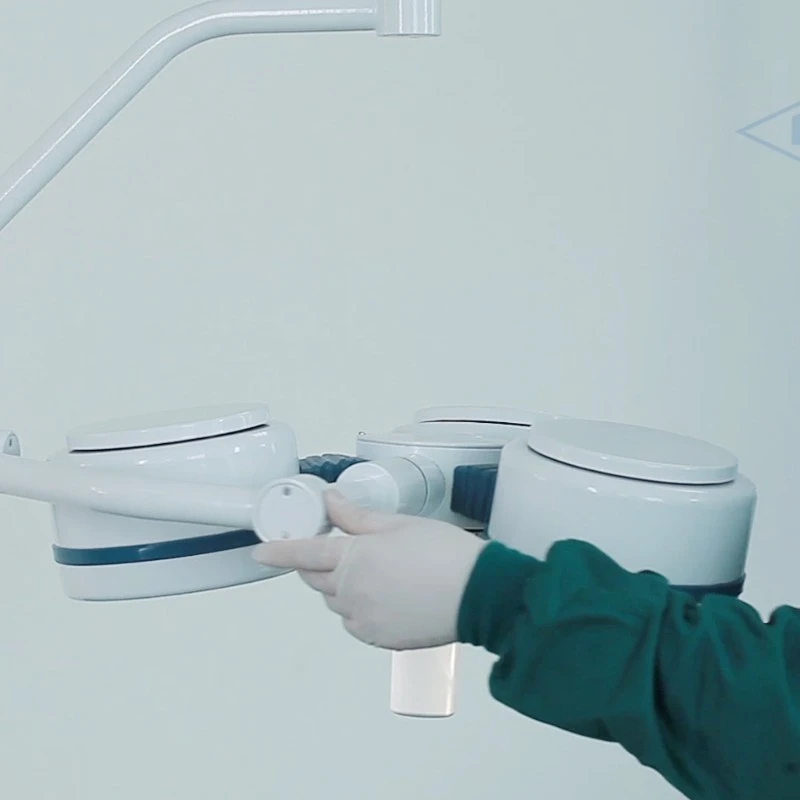

Surgery LED Operating Lamp – Our high-performance Surgery LED Operating Lamp delivers brilliant, shadow-free illumination (up to 150,000 lux) with adjustable color temperature (4800K). Featuring medical-grade LEDs, sterile handles, and advanced cooling technology, it provides optimal visibility for precision surgeries while ensuring energy efficiency (50,000+ hours lifespan). Ideal for modern operating theaters requiring reliable surgical lighting.
Features
Independent light bulb: YD01-LED series surgical auxiliary mobile surgical lighting is composed of multiple multi-lens light source matrices, where each multi-lens light source matrix contains a certain number of LED (light-emitting diode) light sources, and each light source can Light is emitted separately and reflected by their respective reflective surfaces, converging into a beam of light.
Good lighting environment: Renew operation irradiation parts rapidly and improves doctor's working environment. Illuminance equality, high shadowless rate, high definition to improve doctor's working efficiency.
Long service life: Halogen generally is 1000hours, the LED is the (Osram) more than 50000 hours.
Adjustable lighting depth: Lighting depth can be adjusted by handle CAD/CAM technology.
Adopt OSRAM lamp beads: LED lamp beads for OSRAM operation are used, which have high definition, large light spot, no temperature operation field of vision, and emit natural too much eye light to relieve the fatigue of eyes during operation.
Multi-point light source design: Examination Lamp adopts multi-point light source design to make the light spot illumination more uniform.
Main Parameters
|
Technical Parameters |
YD01-LED5 |
|
Illuminance |
≥150,000Lux |
|
Colour temperature |
4800±300K |
|
Colour reduction index (Ra) |
96 |
|
Illuminance depth |
600mm |
|
Total irradiance |
555W/㎡ |
|
Size of light field |
100-240mm |
|
Lamp head diameter |
550mm |
|
Rated power of bulb |
3.2V/1W |
|
Service life of illuminant |
≥50,000h |
|
Power supply voltage |
AC110-240V, 50-60Hz |
|
Best height of installation |
2900mm |
|
Total power |
100VA |
|
Number of bulbs |
65 |
|
Standard installation height |
Vertical |
|
The balance arm swings up and down |
45° |
